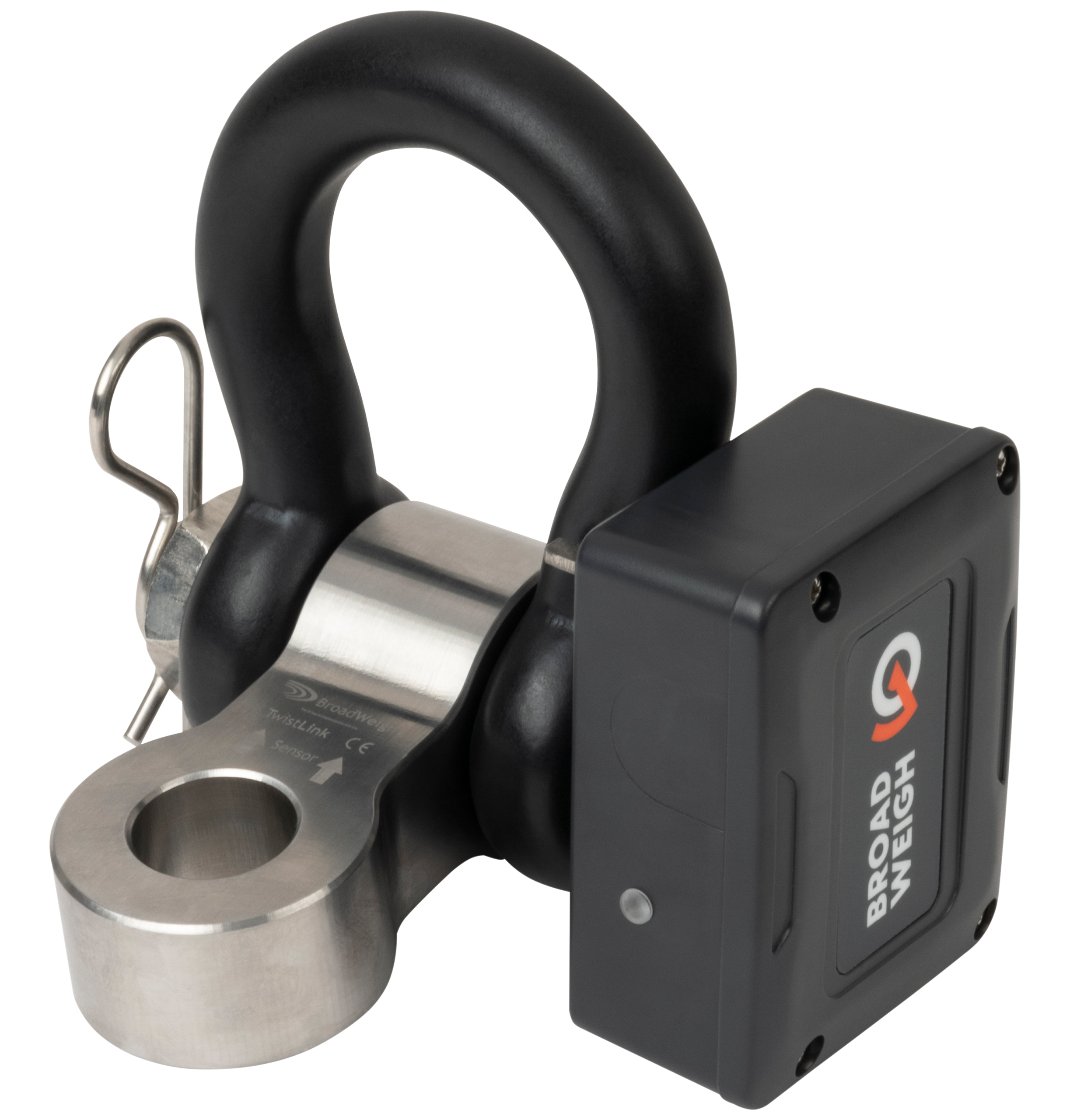

TwistLink Load Shackle

BW-S475-TL

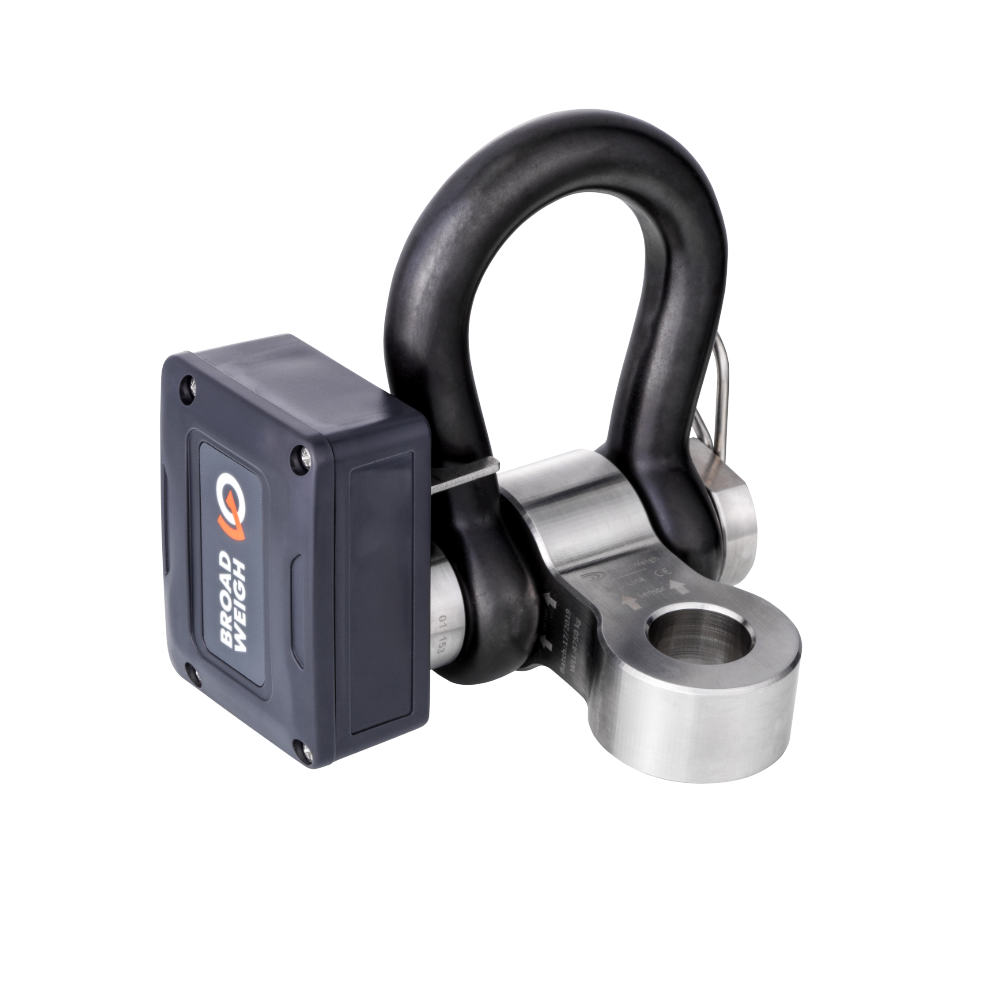

TwistLink Load Shackle BW S475 TL LH angle

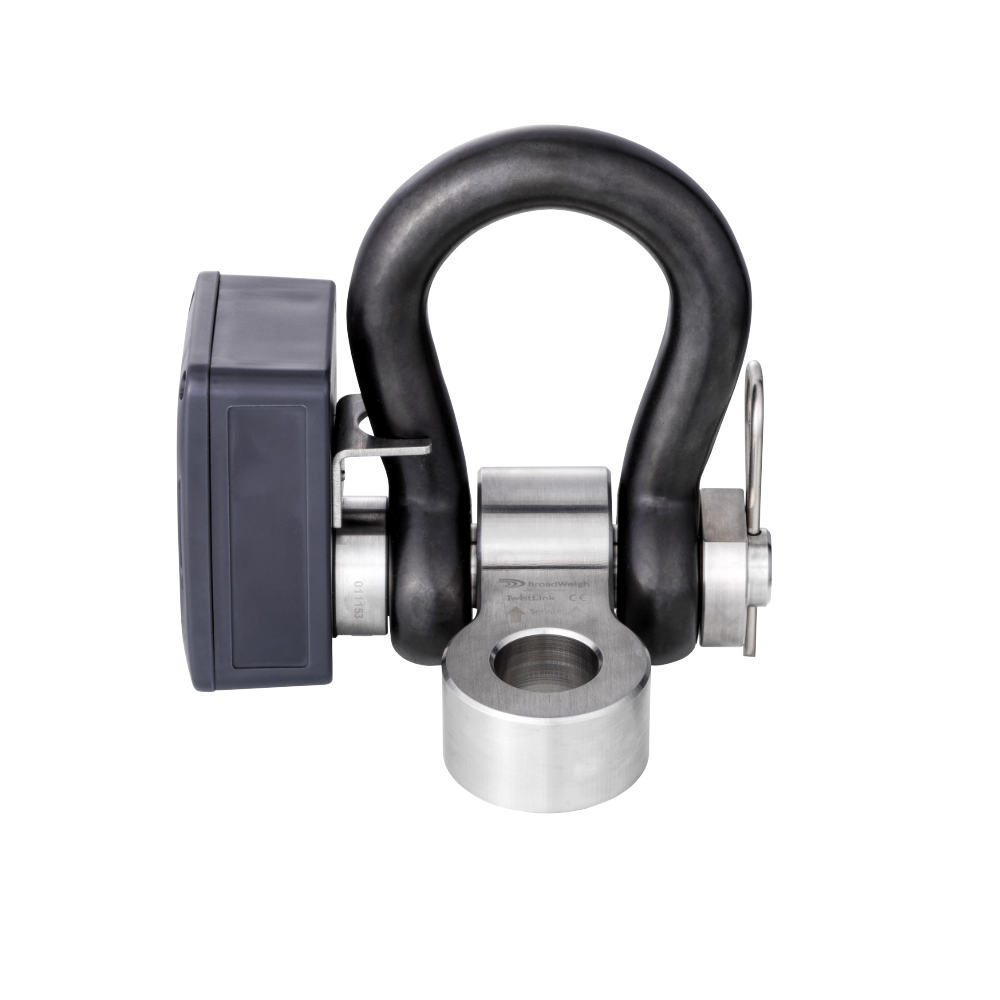

TwistLink Load BW-S475-TL Head on A

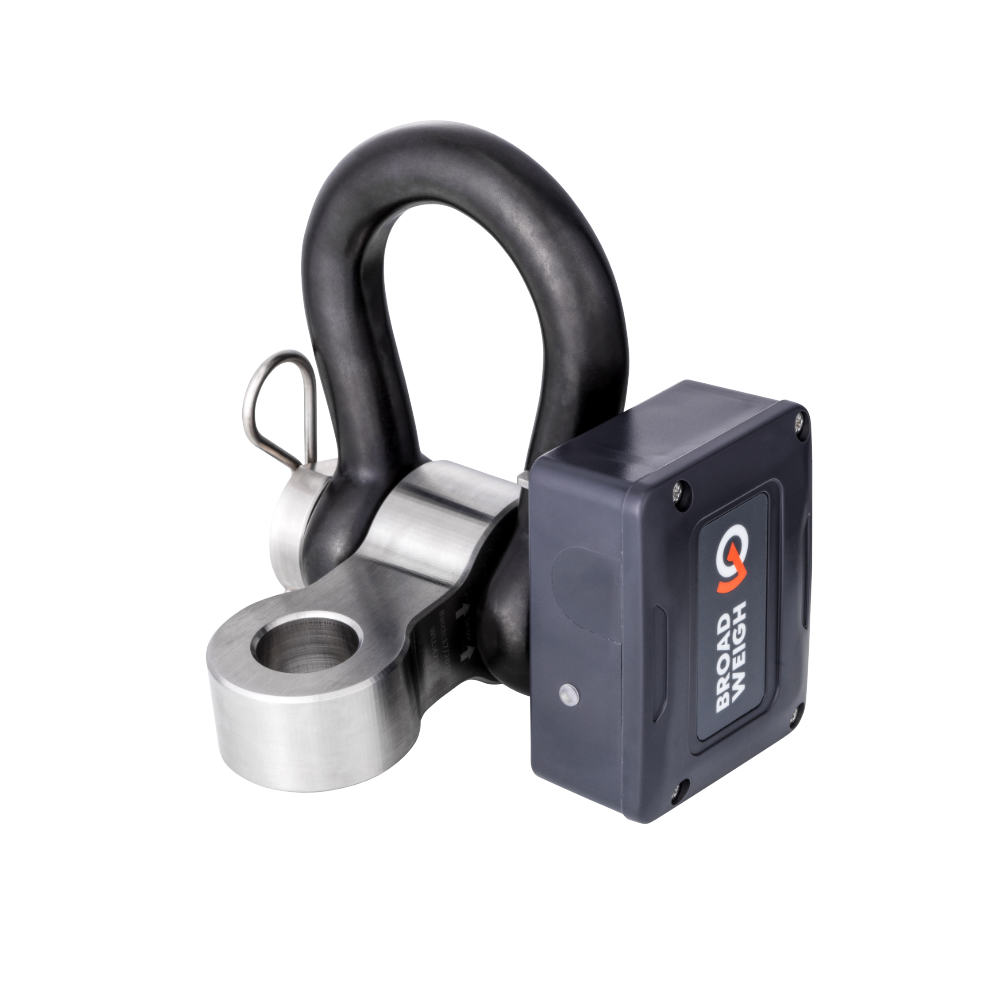

TwistLink Load BW S475 TL RH angle

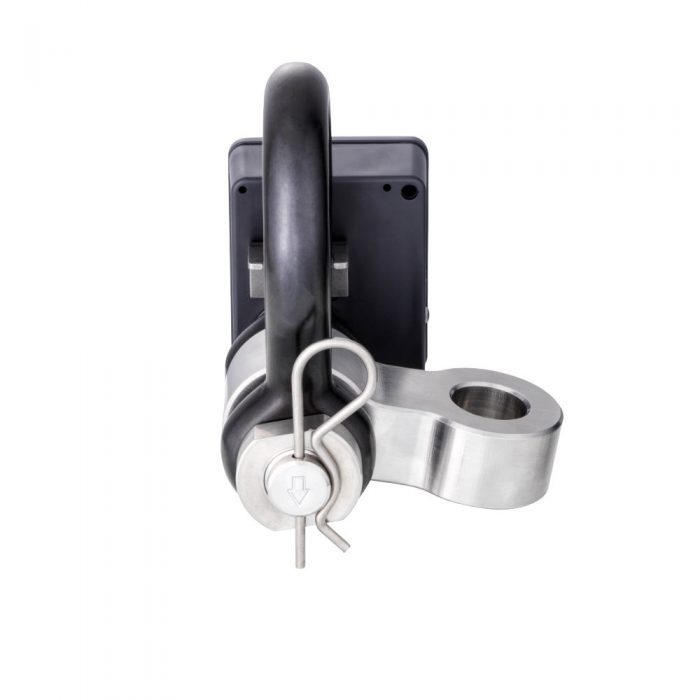

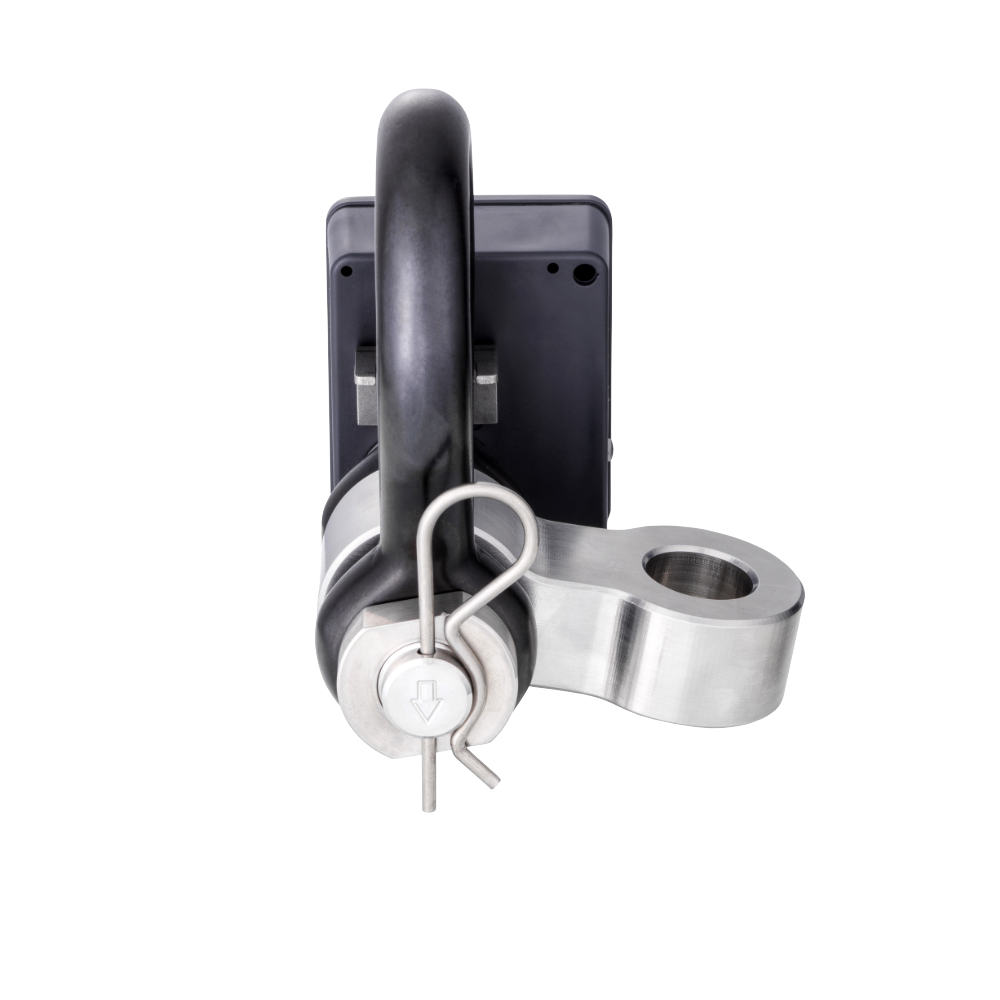

TwistLink Load Shackle BW S475 etching Head on ABW S475 TL Head on C

2.4 GHz Wireless Load Monitoring > Sensors

  • New Generation 3 now released
  • Smart Sleep protects battery life whilst monitoring
  • Comfortable in the most challenging RF environments
  • Easy power cycle with one swipe using new magnetic fob
  • New bow with black surface treatment brings superior tolerances, finish and durability
  • Easy to install and allows quick connection to 3.25 or 4.75 tonne shackles
  • Ideal for temporary or semi-permanent installations
  • Leaves more space in the shackle body to allow larger hook / tackle connection
  • Holes at 90 degree to minimise torsional forces
  • Low trim
  • Aerospace graded stainless steel
  • Conforms to European Machinery Directive
  • WLL of 4750 kg
  • Supplied and calibrated as one unit – also available as an accessory

Download Generation 3 Release Notes

Lifetime warranty available as part of our annual calibration service.

Further Information

This smart piece of kit allows a 4.75 tonne Broadweigh shackle to be connected to a 3.25 tonne or 4.75 tonne shackle without having to mess around with the pin, nut and Rclip.

It has holes at 90 degrees to minimise potential torsion loading in the load pin and to maintain accurate measurement and also conforms to the European Machinery Directive.

ff-ce-logos

Broadweigh User Manual

File size: 6.55 MB
Created: 11-12-2020
Updated: 23-12-2020
Hits: 15701
Version: 03.09c
Download Preview

Broadweigh Original Instructions

File size: 3.32 MB
Created: 07-02-2020
Updated: 23-06-2020
Hits: 8682
Version: 01.02
Download Preview

Broadweigh Original Instructions Gen 3

File size: 3.49 MB
Created: 05-11-2020
Updated: 05-11-2020
Hits: 2885
Version: 01.03
Download Preview

BW-TL-S475 Product Sheet

File size: 468.15 KB
Created: 12-01-2020
Updated: 25-06-2020
Hits: 4161
Download Preview

Broadweigh EcoSystem

File size: 232.53 KB
Created: 27-06-2020
Updated: 04-09-2020
Hits: 12485
Version: 01.02
Download Preview
